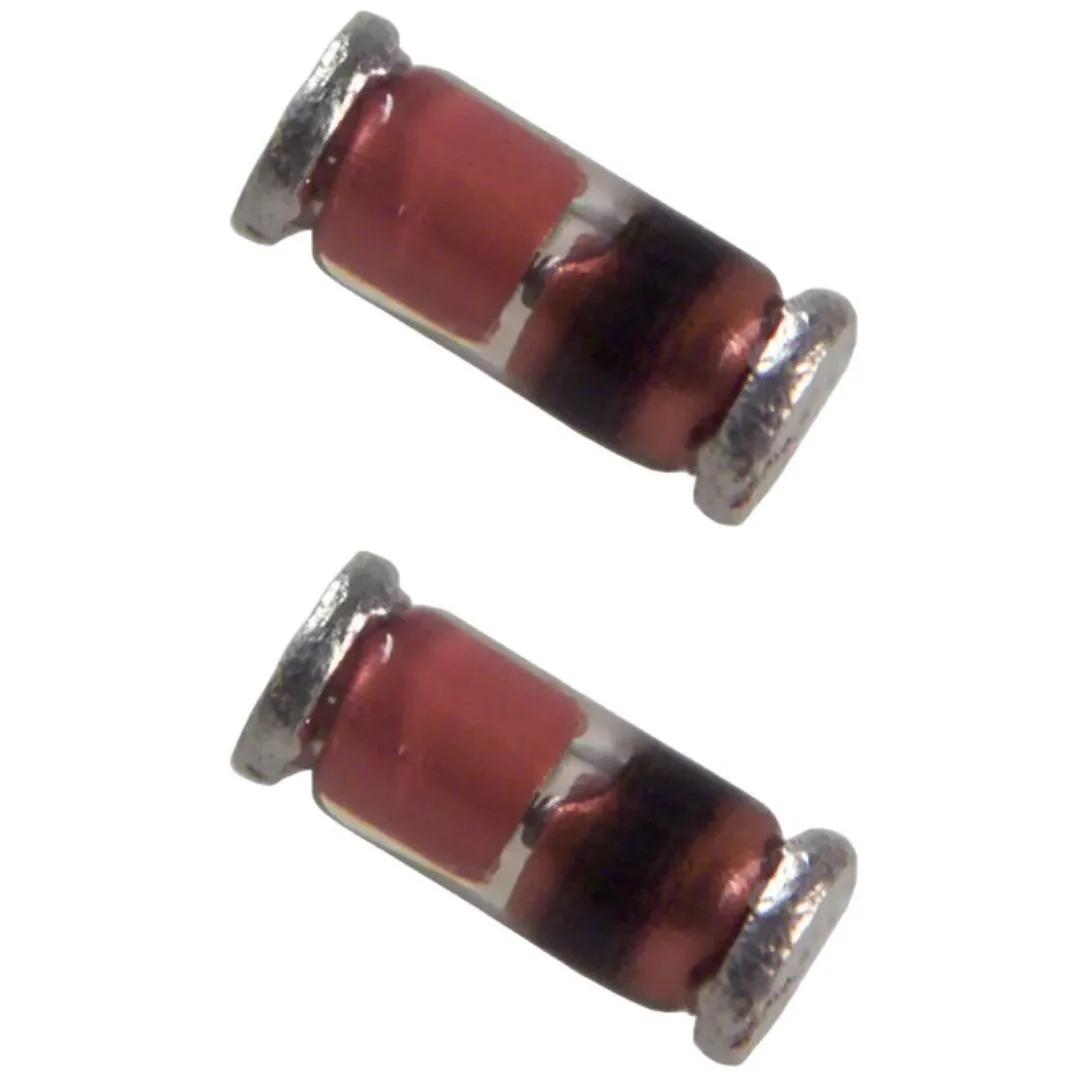

Cdil C-LL4148 Diodes - General Purpose, Power, Switching Small Signal Diode

Fast Switching Speed: Ultra-fast response time for high-frequency applications. High-Frequency Switching Circuits – Used in digital logic and RF circuits. Signal Processing & Clipping – Ideal for wave-shaping and signal demodulation. General-Purpose Rectification – Converts AC to DC in low-power applications. Voltage Clamping & Protection – Prevents voltage spikes in sensitive electronics. Logic Circuits & Timing Applications – Supports fast and efficient switching in digital systems. Technical Specifications: Forward Voltage (Vf): 1.0V max at 10mA Reverse Voltage (Vr): 75V Reverse Current (Ir): ≤ 25nA at 20V Max Forward Current (If): 300mA Peak Surge Current (Ifsm): 4A (8.3ms pulse) Reverse Recovery Time (trr): <4ns (typical) Package Type: SOD-80 (LL-34) Surface Mount Operating Temperature Range: -65°C to +175°C
