Verified SupplierWholesale IPR TK-80-T Robot Gripper Mount Supplier in UAE
إ.د 275.44 - إ.د 280.44 (AED)
| Minimum order quantity |
10 Piece
|
| Port of dispatch |
Contact
Supplier
|
| Processing time |
Contact
Supplier
|
| Estimate pricing |
Contact
Supplier
|
| Packaging |
Contact
Supplier
|
| Availability |
In
stock
|
Products Description

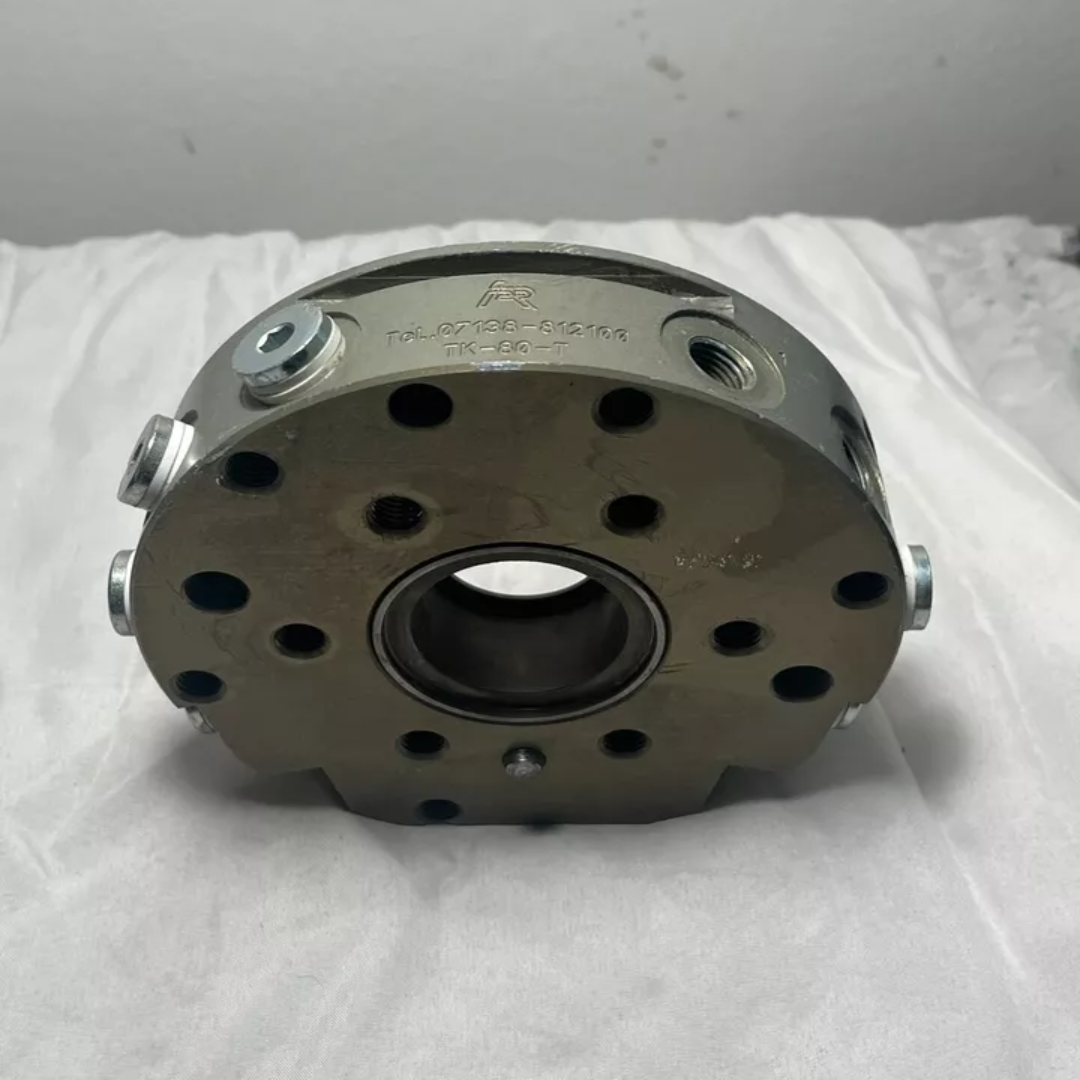

The IPR TK-80-T is a pneumatic quick-change tool changer designed for industrial robots, facilitating rapid and secure swapping of end-of-arm tooling (EOAT) such as grippers, welders, or custom tools. This model is part of IPR’s TK Series, known for its compact design, high load capacity, and precise repeatability.
Technical Specifications -
Actuation Type: Pneumatic
Mounting Interface: ISO 80 flange
Recommended Handling Weight: Up to 60 kg
Maximum Distance to Center of Mass: 500 mm
Maximum Tensile Force (Fz): 9,000 N
Maximum Compressive Force (Fd): 17,000 N
Maximum Moments:
Mx / My: 2,000 Nm
Mz: 1,700 Nm
Repeatability: ±0.025 mm
Weight: 1.3 kg
Coupling Path: 37 mm
Pneumatic Feedthroughs: 2x G1/8″ and 8x G1/4″
Operating Pressure: 4.5 – 8 bar (nominal 6 bar)
Ambient Temperature Range: 5°C to 80°C
Key Features -
Quick Tool Change: Enables rapid swapping of tools, reducing downtime.
High Load Capacity: Suitable for applications requiring handling of heavy tools or workpieces.
Precision Alignment: Ensures accurate positioning with high repeatability.
Integrated Pneumatic Feedthroughs: Facilitates seamless integration of pneumatic tools.
Compact and Lightweight: Minimizes impact on robot payload and reach.
