Products Description

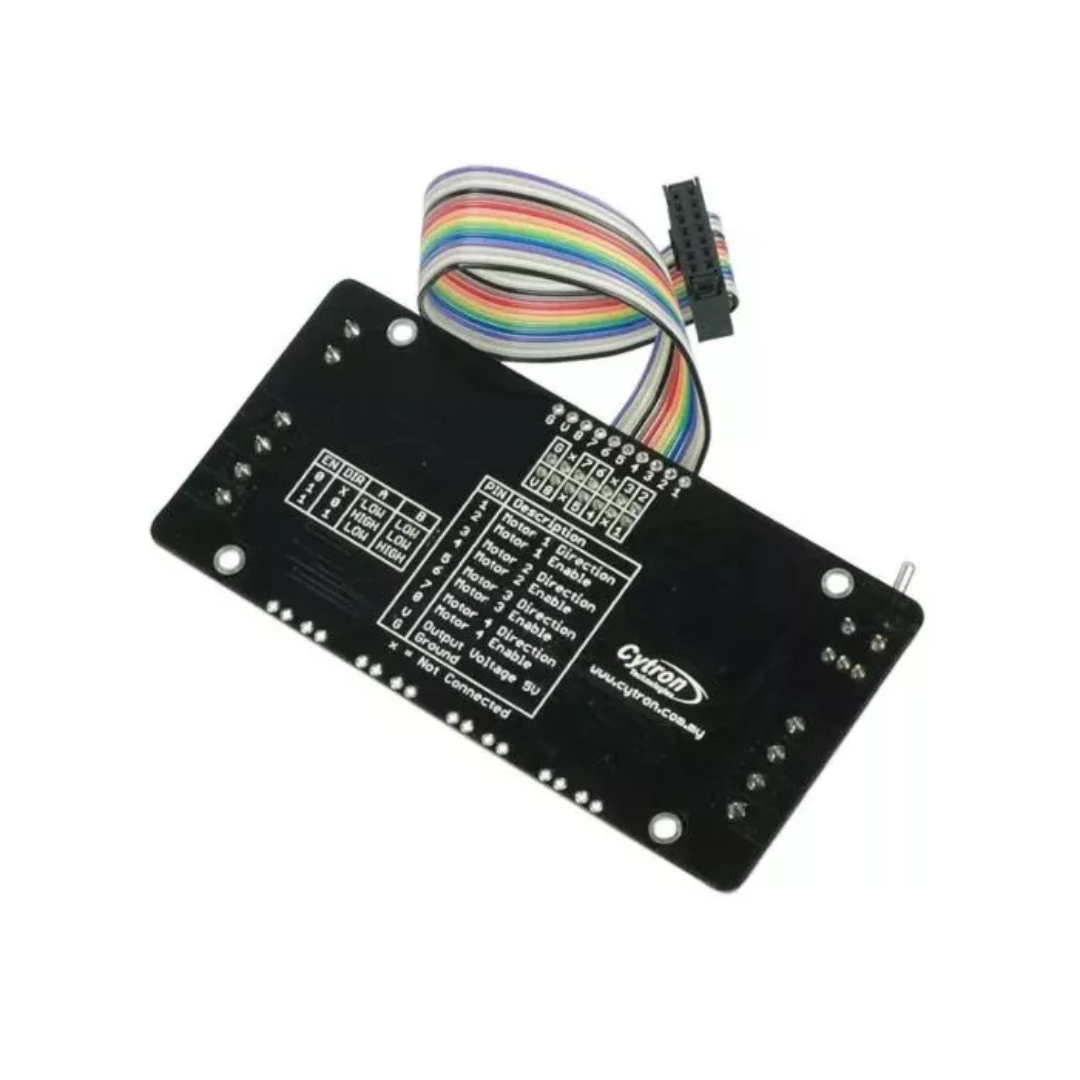

The Cytron FD04A 4-Channel Brushed DC Motor Driver is a versatile and cost-effective solution for controlling up to four brushed DC motors. It's particularly well-suited for applications like omnidirectional robots, automation systems, and educational projects.
Operating Voltage: 7V to 25V DC
Continuous Current per Channel: 1.5A
Peak Current per Channel: 2.5A
Logic Input Voltage: Compatible with 3.3V and 5V logic levels (e.g., Arduino, Raspberry Pi, PLC)
Control Interface: PWM and Direction (DIR) inputs
Maximum PWM Frequency: 10 kHz
Dimensions: Approximately 107mm x 53mm x 12mm
Weight: Approximately 50 grams
Protection Features:
Overcurrent protection
Reverse polarity protection
Features
Bidirectional Control: Allows for forward and reverse motion control of each motor.
Onboard Test Buttons: Facilitates quick testing without the need for a separate controller.
LED Indicators: Provides visual feedback for power status and motor direction.
Pluggable Connectors: Simplifies wiring and enhances user-friendliness.
Industrial-Grade PCB: Ensures durability and reliability in various applications.
Compatibility: Fully compatible with Cytron's Flexibot project and other DIY robotics platforms.
