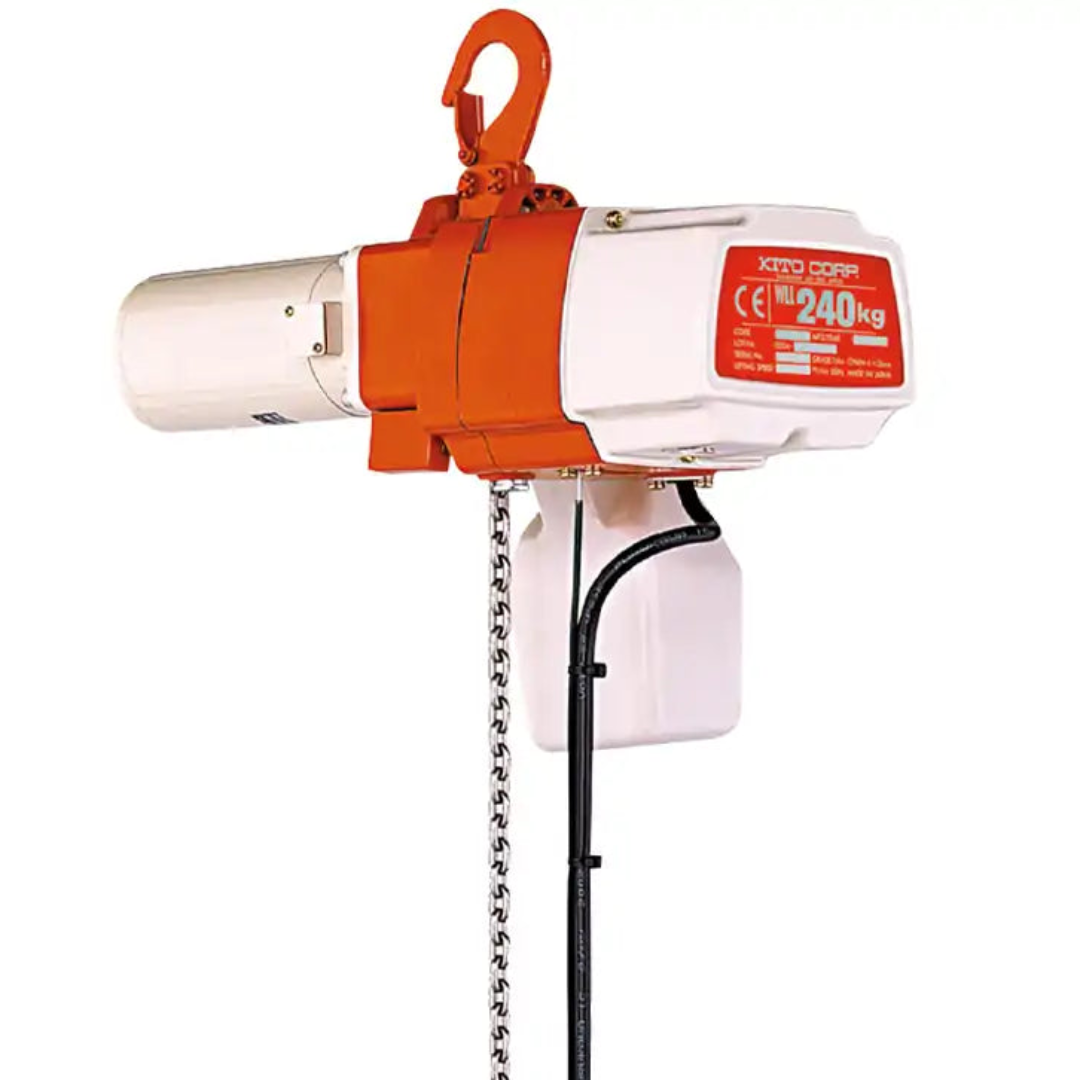

ED Electric Chain Hoist Lifting Equipment UAE Dealer

Load Capacity: Supports from 60 kg up to 480 kg depending on model (single-phase power). Lifting Speed Options: Available in single‑speed and dual‑speed variants, with high speed up to ~20 m/min (≈ 66 ft/min) depending on configuration. Compact & Lightweight: Minimal headroom design; e.g. 100 kg model weighs just ~11.5 kg for easy handling and installation. High-Speed Motor: Compact DC-style motor with rectifier provides smooth, efficient lifting with reduced heat output. Double Braking System: Combines Weston-style mechanical brake with regenerative brake for enhanced load control and safety. Friction Clutch Protection: Integrated with the brake to prevent damage from overloading or overtravel. Durable Chain & Gearing: Nickel‑plated, heat‑treated alloy steel load chain resists wear and corrosion; gears are induction‑hardened and immersed in an oil bath for smooth, quiet operation and long life. 360° Swivel Bottom Hook: Forged carbon steel hook rotates for easy load positioning; includes heavy-duty latch for safety. Robust Protection Ratings: Hoist unit IP54; push button pendant control typically rated IP65 for dust and water resistance; suitable for various environments.
