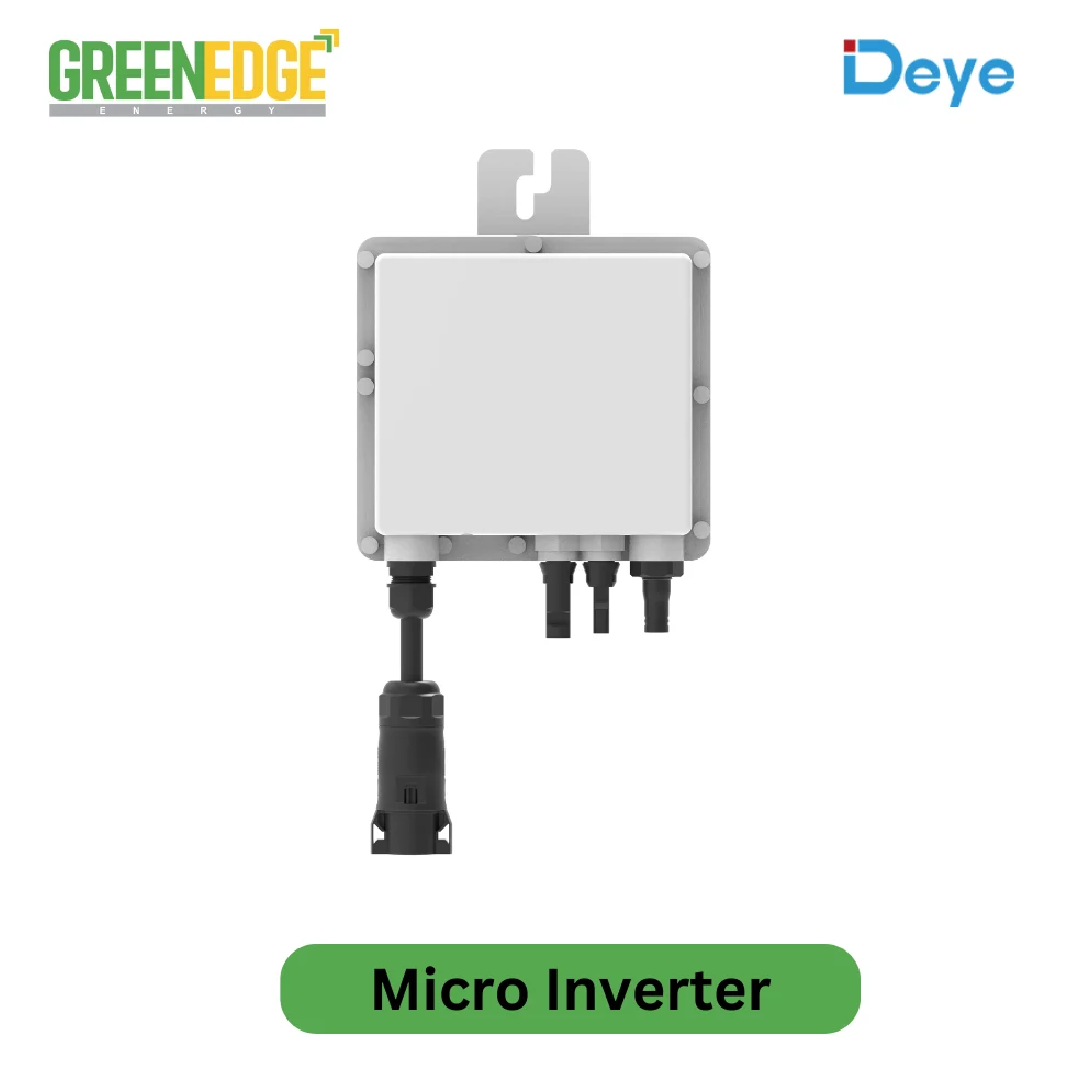

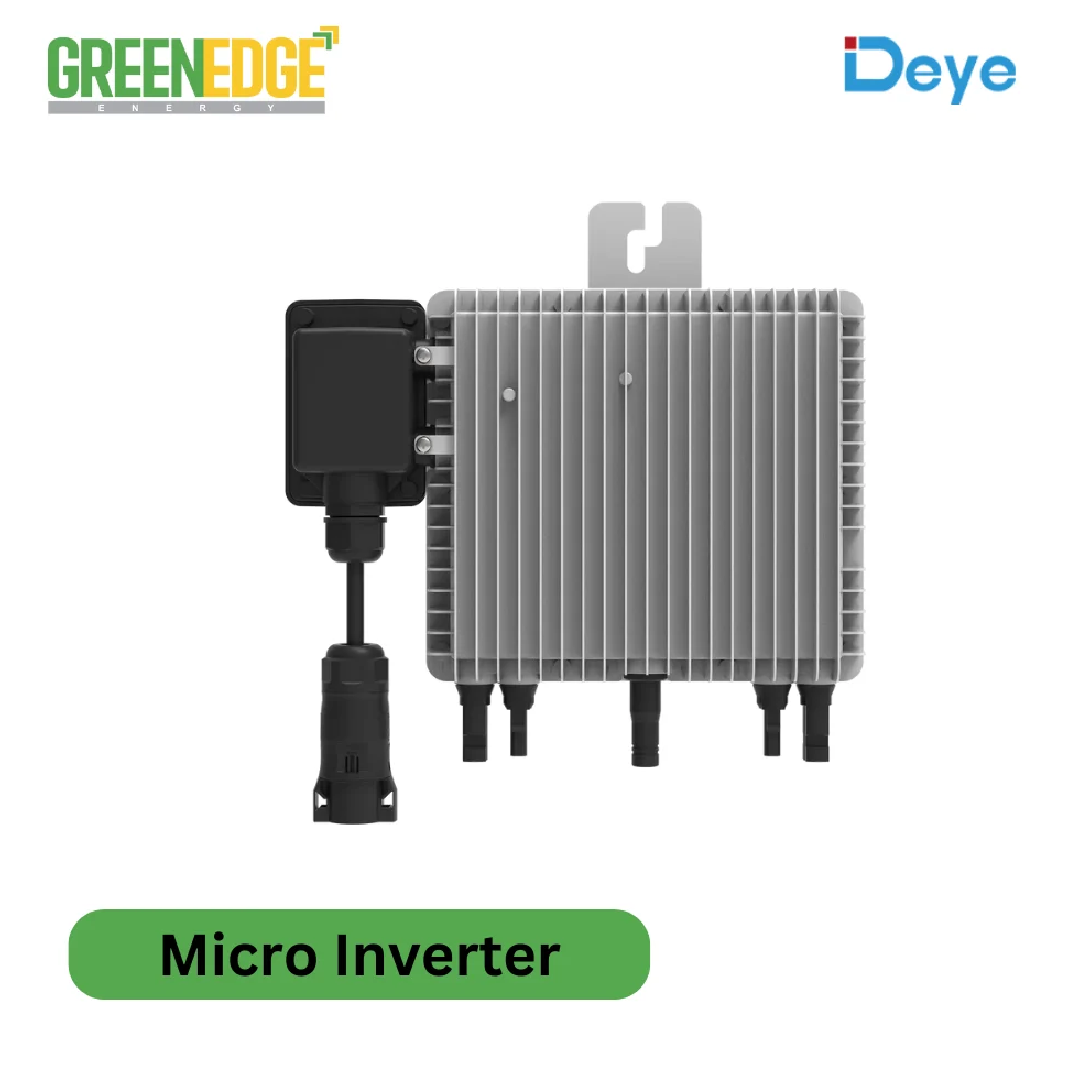

2Kw Micro Solar Inverter
₹ 32000.00 - ₹ 33000.00 (INR)| Minimum order quantity |
1
|
| Port of dispatch |
Contact
Supplier
|
| Processing time |
Contact
Supplier
|
| Estimate pricing |
Contact
Supplier
|
| Packaging |
Contact
Supplier
|
| Availability |
In
stock
|
Products Description
Technical Specifications – Solar Inverter
Max. PV Input:
Input Power: 210 – 700 W (4 Pieces)
Input Voltage: 60 V
Start-up Voltage: 20 V
MPPT Voltage Range: 25 – 55 V
Rated PV Input Voltage: 42.5 V
Max. Operating PV Input Current: 18 + 18 + 18 + 18 A
Max. Input Short Circuit Current: 27 + 27 + 27 + 27 A
MPPT & String Configuration:
No. of MPPT Trackers / Strings per MPPT: 4 / 1
AC Output Parameters:
Rated AC Output Active Power: 2000 W
Max. AC Output Apparent Power: 2000 VA
Rated AC Output Current: 9.1 A / 8.7 A
Max. AC Output Current: 9.1 A / 8.7 A
Rated Output Voltage / Range: 220 / 230 V (0.85Un – 1.1Un)
Grid Connection Form: L / N / PE
Rated Grid Frequency / Range: 50 Hz (45 – 55 Hz) / 60 Hz (55 – 65 Hz)
Performance & Safety:
Max. Units per Branch: 3
Power Factor Adjustment Range: 0.9 leading – 0.9 lagging
Total Harmonic Distortion (THDi): <3%
DC Injection Current: <0.5% of rated output
