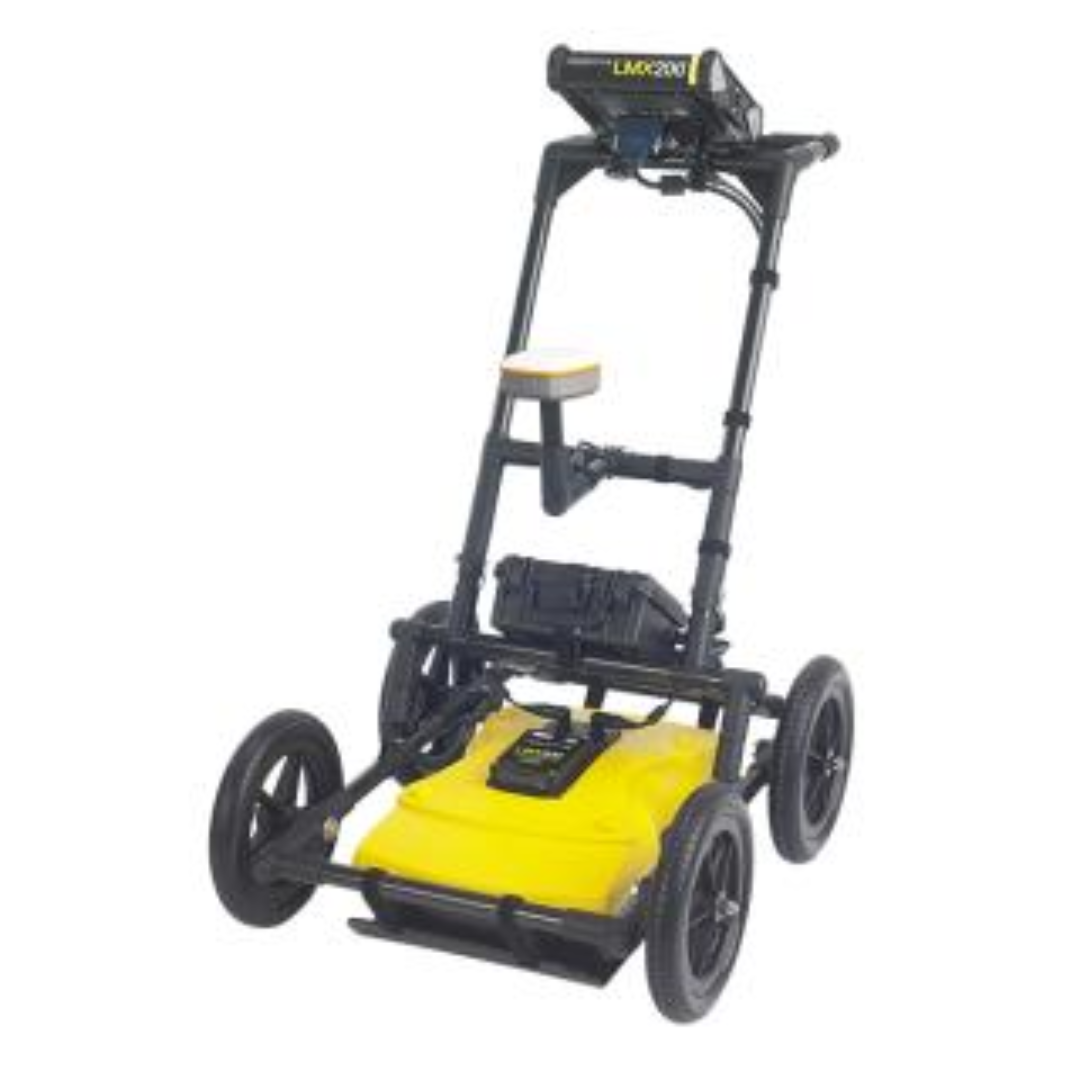

LMX200 GPR for High-Accuracy Deep Subsurface Detection

The LMX200™ GPR is a high-performance subsurface imaging system designed for accurately locating both metallic and non-metallic underground utilities and structures. It employs a patented ultra-wideband 250 MHz antenna to provide a balanced depth penetration of up to 8 m (26 ft) while retaining fine resolution. With Dynamic Target Enhancement (DynaT™) and Dynamic Stacking (DynaQ™), the system lets users optimize signal clarity for small, medium, or large targets. Its intuitive 8-inch touchscreen display supports both Line-Scan and guided Grid-Scan modes, making field surveys efficient and user-friendly. The fiberglass cart frame is lightweight and non-metallic, minimizing signal interference and boosting portability. On-board Wi-Fi enables instant on-site report generation, while USB connectivity allows data export for post-processing in EKKO_Project software. Integration with external GNSS enhances geo-referenced mapping through SplitView and MapView, giving users a real-time bird’s-eye survey view. A swappable gel-cell battery ensures 4–6 hours of continuous operation, and the rugged, IP-rated design tolerates demanding environmental conditions.
