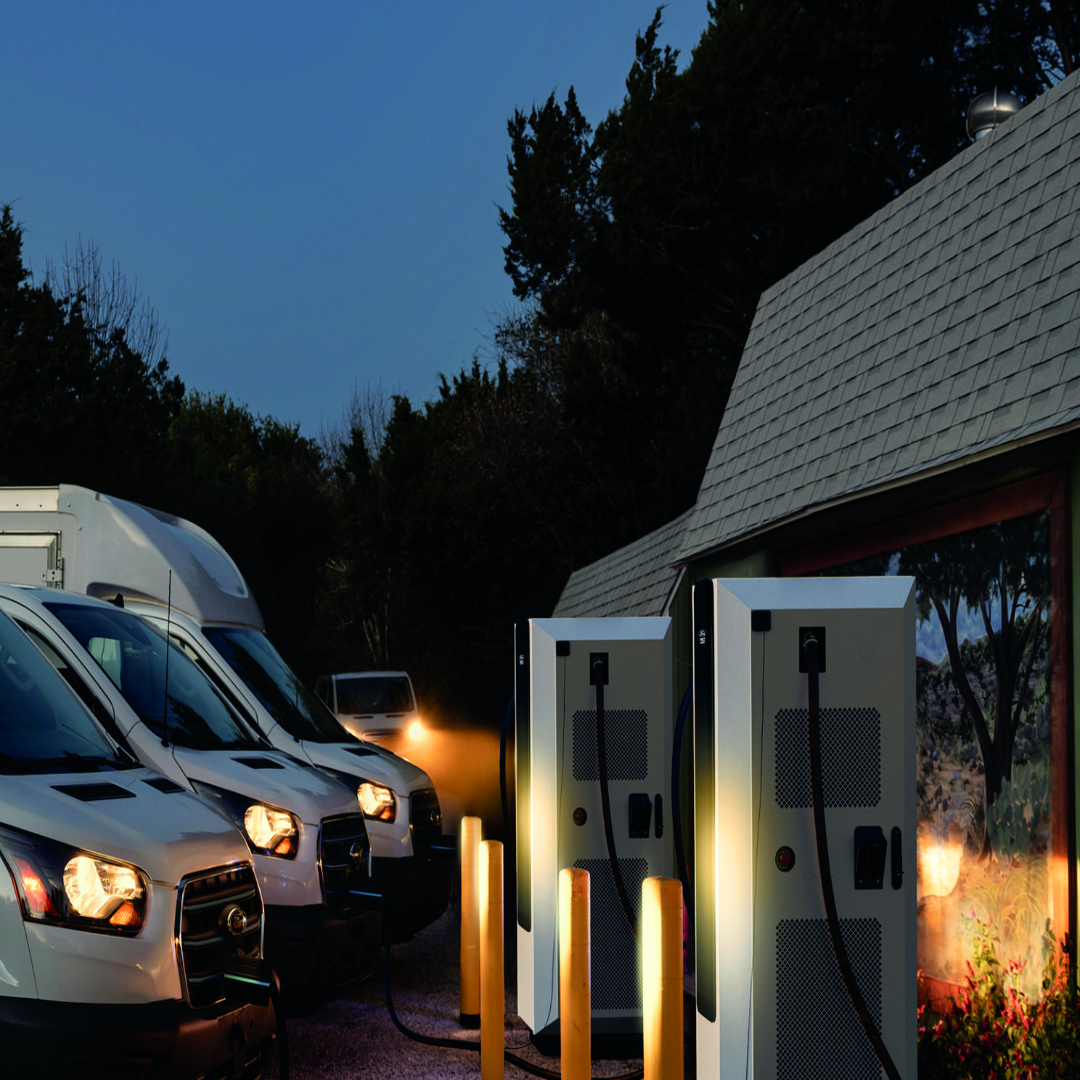

Ford Pro DC Charging Station 120kW USA Distributor

A robust, commercial-grade DC fast charger tailored for fleet, public, or depot use, offering high-performance charging with flexible authentication and connectivity options. Key Features: High-Speed Charging: Dual CCS‑1 ports deliver up to 2×60 kW simultaneously, or a single 120 kW charge at >400 Vdc. Power & Efficiency: Inputs on 480 V 3‑phase; max 300 A output, supports 150–1000 Vdc; >95 % efficiency, PF >0.99, THD <4 %. Rugged Build: NEMA 3R/IP54 enclosure with IK10 impact rating (IK08 on vents), wind-loaded to 200 mph; operates from –30 °C to +50 °C. User Access & Billing: 10″ OLED touchscreen supports English and French; OEM RFID; optional integrated payment terminal enabling credit/debit/app payments. Connectivity & Management: Factory-configured 4G LTE, optional Wi‑Fi (b/g/n), and 1 GbE Ethernet; works with OCPP 1.6J cloud management and OTA firmware updates. Safety & Compliance: UL 2202, CSA 22.2 280‑16, NEC 625, FCC Part 15; built-in Type 2/Class II surge protection, ground-fault and plug-out detection per SAE J2931. Physical Specs: 0.67 × 0.75 × 1.80 m footprint; weight approx. 334 kg; cables 20 ft with smart management system. Warranty & Support: 3-year limited warranty (parts and labor) with Ford Pro installation; extended service plans up to 5 years available via Ford Protect.
