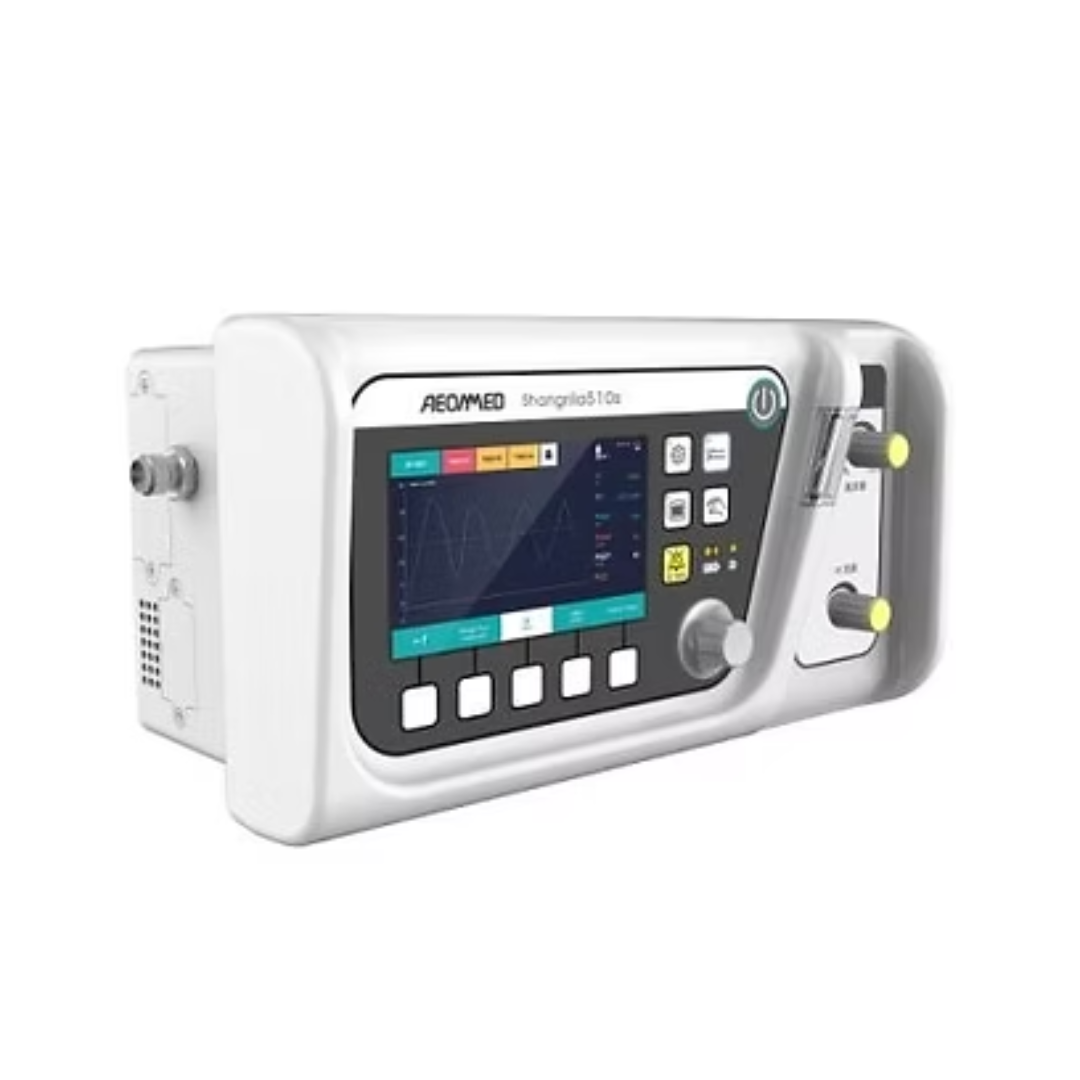

Verified SupplierAEONMED Shangrila 510S Ventilator UAE ICU Grade Precision
إ.د 32950.00 - إ.د 35950.00 (AED)
| Minimum order quantity |
1 Piece
|
| Port of dispatch |
Contact
Supplier
|
| Processing time |
Contact
Supplier
|
| Estimate pricing |
Contact
Supplier
|
| Packaging |
Contact
Supplier
|
| Availability |
In
stock
|
Products Description
Key Features
Ventilation Modes:
Assist/Control (A/C) – Volume and Pressure modes
Synchronized Intermittent Mandatory Ventilation (SIMV) – Volume and Pressure modes
Spontaneous/Pressure Support Ventilation (SPONT/PSV)
Continuous Positive Airway Pressure (CPAP)
Adjustable Parameters:
Tidal Volume: 0–2000 ml
Respiratory Rate: 1–120 bpm (A/C mode), 1–40 bpm (SIMV mode)
Inspiratory to Expiratory (I:E) Ratio: 1:10 to 4:1
Positive End-Expiratory Pressure (PEEP): 0–30 cmH₂O
Fraction of Inspired Oxygen (FiO₂): 40%–100%
Flow Trigger: 2–30 L/min
Monitoring and Display:
5-inch LCD screen displaying real-time waveforms (Pressure-Time, Flow-Time)
Monitored parameters: Peak Pressure (Ppeak), PEEP, Tidal Volume (Vt), Minute Volume (MV), Total Respiratory Rate (ftotal), FiO₂
Alarm Systems:
High/Low Minute Volume
High/Low FiO₂
High/Low Airway Pressure (Paw)
Apnea
Oxygen Supply Failure
Low Battery
External Power Loss
Power and Battery:
AC Power Supply: 100–240 V, 50/60 Hz
Internal Battery: Approximately 4.5 hours of operation
Optional dual battery configuration for extended use up to 10 hours
Physical Specifications:
Dimensions: 168 mm × 156 mm × 300 mm
Weight: 3.2 kg (main unit); 8 kg (with accessories)
Operating Temperature Range: -18°C to 50°C
IPX4 water resistance rating
