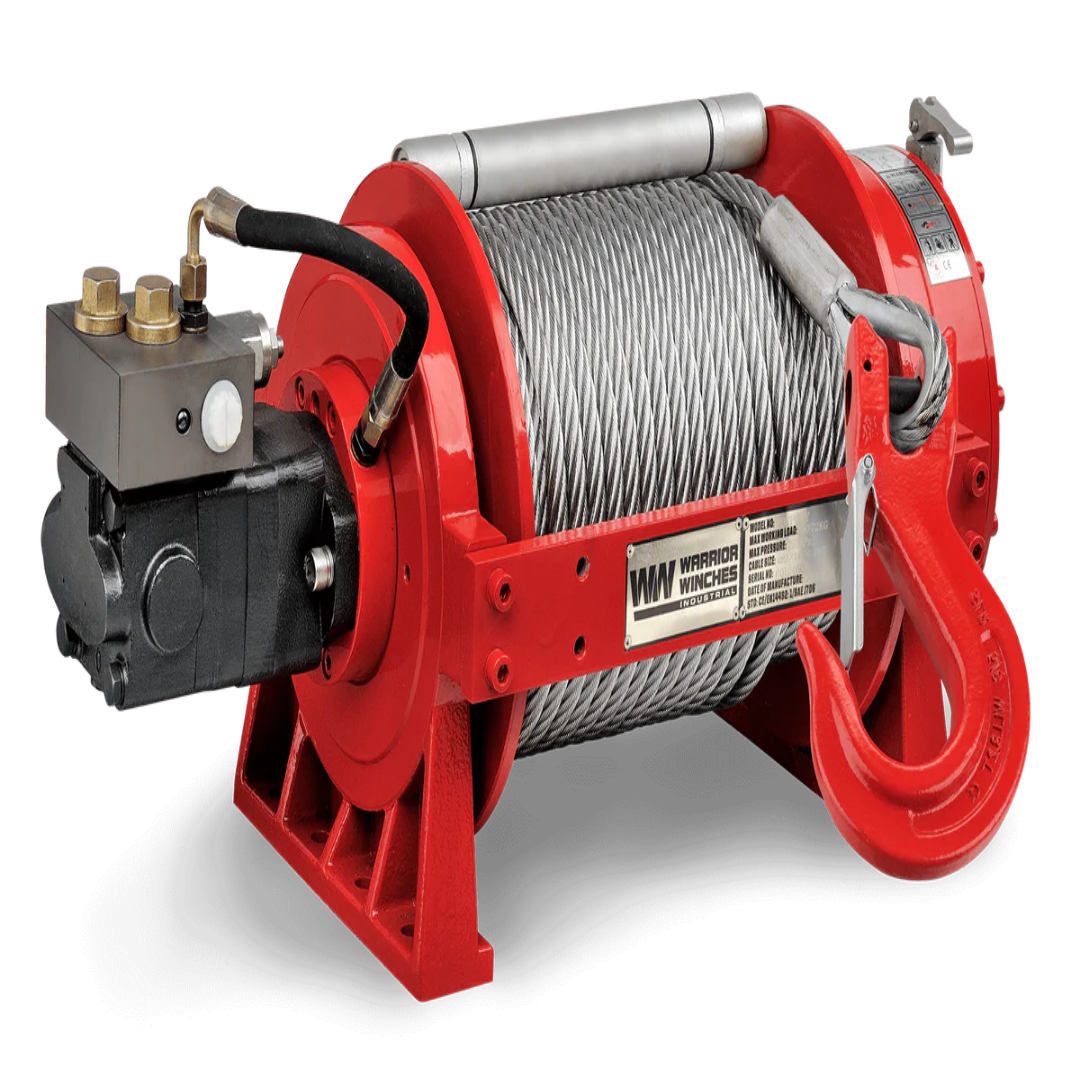

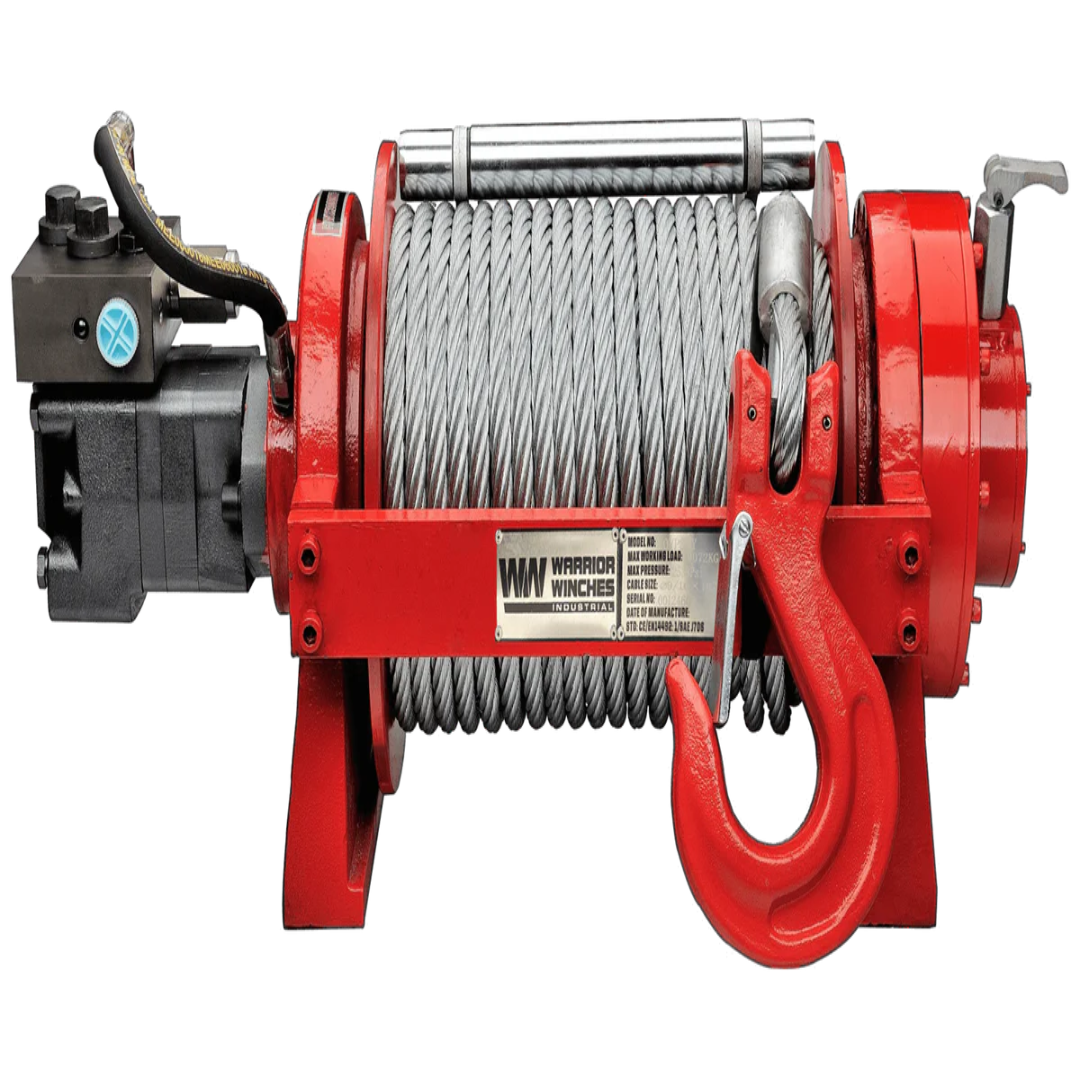

9 Ton Skid Steer Hydraulic Winch with Steel Rope Strength

The YP9 20,000 lb (9 Ton) Skid Steer Hydraulic Winch is a heavy-duty, industrial-grade winch designed for skid loaders and other hydraulic machinery, delivering a maximum pulling capacity of 20,000 lb. It features a 100 cc hydraulic motor compatible with flows up to 19.8 GPM and pressures up to 17.5 bar, ensuring powerful and consistent operation. The winch incorporates a two-stage planetary gearbox (39:1) for efficient torque transfer and a wet-type hydraulic brake for secure load holding. Its steel drum measures 5.43″ diameter × 12.44″ length, accommodating a 9/16″ × 164 ft steel cable for extended reach. A balance valve and rope tensioner provide smooth and controlled spooling, while the rugged steel frame ensures durability in harsh environments. With an IP67 waterproof rating, the winch withstands wet or muddy conditions, and its design allows easy mounting on skid steers or trailers. Ideal for industrial, construction, forestry, or recovery operations, it combines strength, safety, and reliable hydraulic performance.
